$792.00

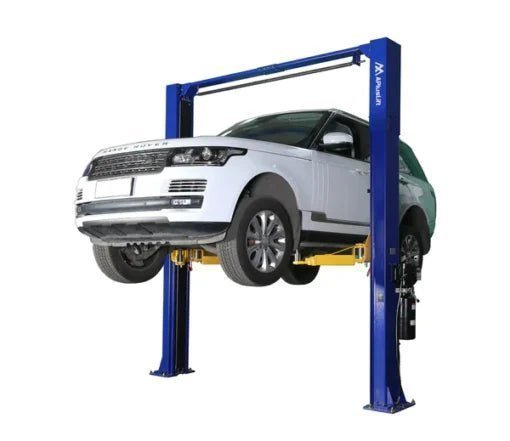

APlusLift HW-10KOH is one of most affortable overhead car lift (auto hoist) with 10000 LB capacity and strong double “S” columns.
Specifications
- Overall Height: 143 3/16″
- Overall Width: 134 5/16″
- Lifting height without Truck Adapters: 75″
- Lifting height with Truck Adapters: 81″
- Minimum Height of Arm Top: 4.5″
- Drive Through Width (Carriage to Carriage): 100″
- Column to Column Width: 109″
- Column Cross Section: 11″L x 7″W
- Driving Mode: Dual hydraulic cylinders, chain drive
- Motor: 220V Single Phase 3HP (need a 30A breaker)
- Hydraulic Oil: 3-5 gallons AW32/AW46
- Time to full rise: 50 sec
- Combo (Symmetrical and Asymmetrical) Arm Assembly
- Front/Rear 3 Stage reach from 22 7/8″ to 42 5/8″
- Rear 2 Stage reach from 33 5/8″ to 52 7/8″
- Adjustable Screw Pads 4 pieces included
- Truck adapters 4 pieces included
- Concrete Requirement: 6″ at 3500psi (4″ for vehicles 9000LB and below)
- Anchor bolts, tool trays, and toe guards included
- Column Steel Thickness: 13/64″
- Carriage Steel Thickness: 15/64″
- Arm Steel Thickness: 15/64″
- Carriage Yoke Thickness: 5/16″
- Base Plate Steel Thickness: 5/8″
