$629.10
The Atlas APEX8 is an ALI Certified version of our most popular 4-post hobbyist lift, the Atlas Garage PRO8000. Perfect for the customer with too many cars and not enough space. The APEX8 allows the user to easily double their space by stacking most passenger cars.
The Atlas APEX8 is designed and built for use by homeowners or restoration shops. This lift is not recommended for use in commercial repair shops where it would be raised and lowered several times per day.
The Atlas APEX8 is nearly 200 lbs. heavier than comparable lifts in the market. It includes a free caster kit with polyurethane wheels. The caster kit can be installed or removed in just a matter of minutes making the lift portable and allowing it to move between bays or even outside. With those features and with the added peace of mind of the ALI Certification the APEX8 is one of the best values in our four-post hobbyist product line.
- ALI Certified Lift
- 8,000 lb. Capacity
- Free Standing/Portable Design
- Powder Coat Finish
- Single Point Lock Release
- Lock Ladder Design
- Double Lock Safety System
- Steel Approach Ramps Included
- Wheel Stops Included
- Two Wheel Chocks Included
- Caster Kit with Polyurethane wheels Included
- Anchor Bolts Optional (Sold Separately)
- Perfect for Storage or Working on Vehicles
- 110volt Electric Operation (Requires 30amp Breaker)
- Shipping Weight: 2,000 lbs.
- 5 yr Structural – 2 yr Hydraulic Warranty

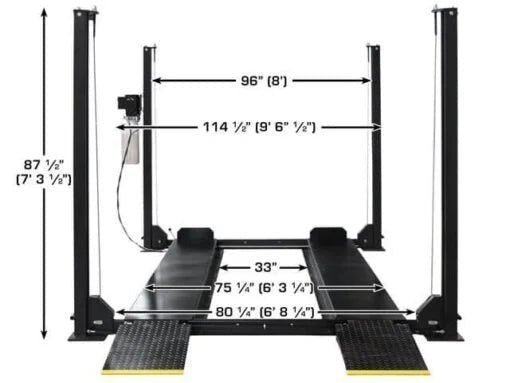

| Atlas Apex 8 Specifications | |
| Capacity | 8,000 lb. |
| Lifting Height To Top of Runway | 72″ (6′) |
| Clearance Under Runways | 67″ (5′ 7″) |
| Height of Columns (Including Nuts) | 86 5/8″ (7′ 2 5/8″) |
| Overall Width (Without Motor or Casters) | 104″ (8′ 8″) |
| Overall Width (With Motor) | 114″ (9′ 6″) |
| Overall Length without Approach Ramps (Including Lock Release Bar) | 186 1/2″ (15′ 6 1/2″) |
| Overall Length with Approach Ramps | 207 5/6″ (17′ 3 5/6″) |
| Approach Ramps | 37 1/2″ (3′ 1 1/2″) |
| Runway Width | 18 2/3″ |
| Runway Rail Width | 2 1/2″ |
| Runway Length | 169 1/2″ (14′ 1 1/2″) |
| Runway Thickness | 4 1/3″ |
| Width Between Runways | 38″ (3′ 2″) |
| Width Between Runway Rails | 33 (2′ 9″) |
| Outside Runway to Outside Runway | 75 1/4 (6′ 3 1/4″) |
| Clearance Between Columns | 94″ (7′ 10″) |
| Length Between Columns | 157 1/3″ (13′ 1 1/3″) |
| Maximum Wheel Base | 154 (12′ 9″) |
| Drive Thru (Outside of tire to outside of tire) | 80 1/4″ (6′ 8 1/4″) |
| Motor/Electrical Requirement | 110 Volt, 30 AMP BREAKER REQUIRED |
| Shipping Weight | 2,000 lb. |
