$1,169.10

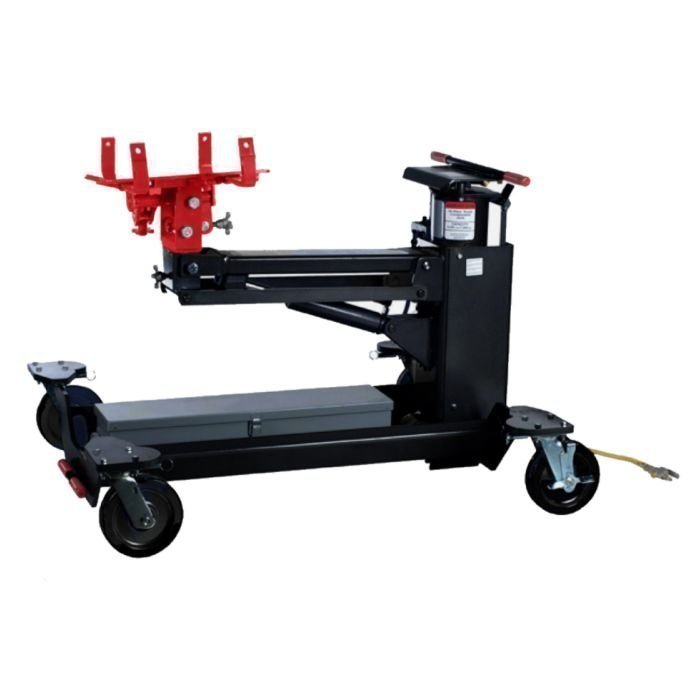

The Challenger Lift is the ultimate high-rise transmission jack. The innovative design provides the most stable, secure component handling system. Featuring a low 30″ start height, it is designed to maneuver under low obstructions. The two-stage design increases productivity through the speed of the air motor and the precision of the hydraulics. The large head plate accommodates a variety of different size components. The lockable and steerable casters provide ease when maneuvering throughout the shop. The CLHM-HTCJ-2000 is perfect for transmissions and any other major component.
Features
- Acme Threaded Head Plate For Easy Adjustments
- 360° Rotating Head
- Fore And Aft Tilting Head
- Quick Ratcheting Brackets For Easy Adjustments
- Retractable Tow Handle
- Made In The U.S.A.
Specifications
- Capacity: 2,700 lbs. (1,224.70kg)
- Minimum Start Height: 30″ (76.2cm)
- Maximum Lift Height: 72″ (182.88cm)
- Air Stage Stroke: 16″ (40.64cm)
- Air/Hydraulic Stroke: 26″ (66.04cm)
- 1st Stage Power: Air
- 2nd Stage Power: Air/Hydraulic
- Required Air Pressure: 110 PSI (7.6 BAR)
- Head Plate Dimensions: 11 1/2″ x 17″ (29.21 x 43.18cm)
- Head Rotation: 360°
- Tilt Forward: 10°
- Tilt Rear: 10°
- Tilt Side to Side: 10°
- Overall Width: 42″ (106.68cm)
- Overall Height: 34 1/2″ (87.63cm)
- Overall Length: 49 5/16″ (125.25cm)
- Handle Length: 44 1/2″ (113.03cm)
- Caster Diameter: 8″ (20.32cm)
- Shipping Weight: 670 lbs. (303.91kg)
