$719.10

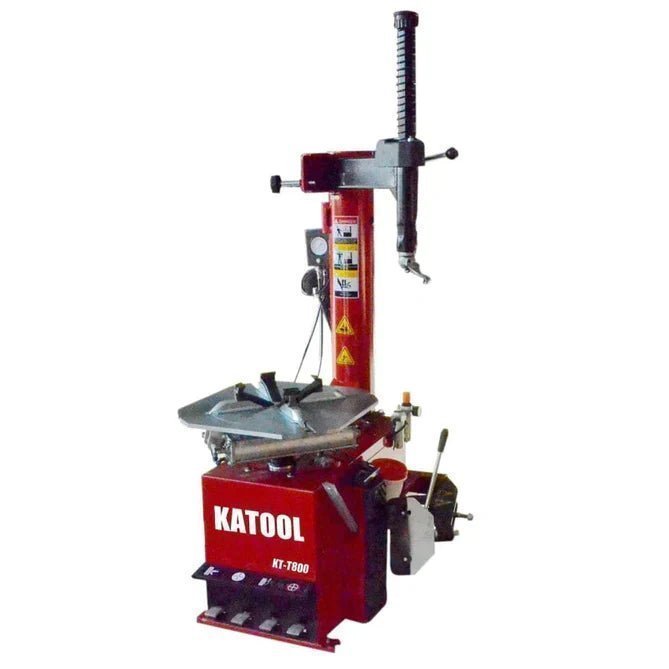

The Katool Wheel Clamp Tire Changer Machine is engineered for precision and durability. The alloy steel jaw undergoes carburization treatment for enhanced tenacity, with a quenching process that ensures both toughness and hardness. The stainless steel mounting head, designed according to engineering mechanics, features a plastic cover for rim protection. Equipped with an inflation gauge controlled by a pedal, the machine includes a high-quality spade cover to prevent rim damage. The pull-type pedal control system facilitates tire changing and maintenance, supported by a top-level motor with pure copper winding for optimal power and longevity. The high-quality lubricator ensures reliable oil drop and efficient compressed air filtration, extending the pneumatic system’s service life. It operates with a robust 110V/1ph/2.0HP motor for superior power and efficiency. With a closed-body design, ensures the protection of internal components, delivering a reliable and efficient tire-changing experience.
Features
- Alloy steel jaw, interface carburization treatment of 0.8-1.1mm deepness, whole quenching process, making the inside of the jaw have more tenacity and the outside harder, and use the jaw cover for protecting the rim
- The mounting head is made of stainless steel with solution treatment and interface polishing, the shape conforms to the engineering mechanics and is accompanied by the plastic cover for protecting the rim
- Inflation gauge with pedal control
- The high-quality spade cover effectively prevents the rim from being damaged
- Pull type pedal control system, easy for tire changing and maintenance
- Top level motor and pure copper winding provides more power, faster heat dissipation, lower defect rate and longer using life
- The high-quality lubricator provides reliable oil-drop and effectively filters compressed air so that the service life of the pneumatic system is extended
- It supports 110V/1ph/2.0HP motor for strongest power and better efficiency
- Closed body for the protection of the parts inside
Specifications
| Max Wheel Diameter: | 41″/1040mm |
| Max Wheel Width: | 15″/380mm |
| Outside Clamp: | 12″-20″ |
| Inside Clamp: | 14″-24″ |
| Power Supply: | 110V 1PH |
| Motor Power: | 2.0HP/1.5KW |
| Rotation Speed: | 6.8r/min |
| Air Pressure: | 0.8-1.0Mpa(116-145psi) |
| Net weight: | 186KG/410lbs |
